IPF6: Shkodra Lake area, Villages of Shiroka and Zogaj, Water supply and Sewage Systems and improvement of Waste Management: Feasibility Study and ESIA

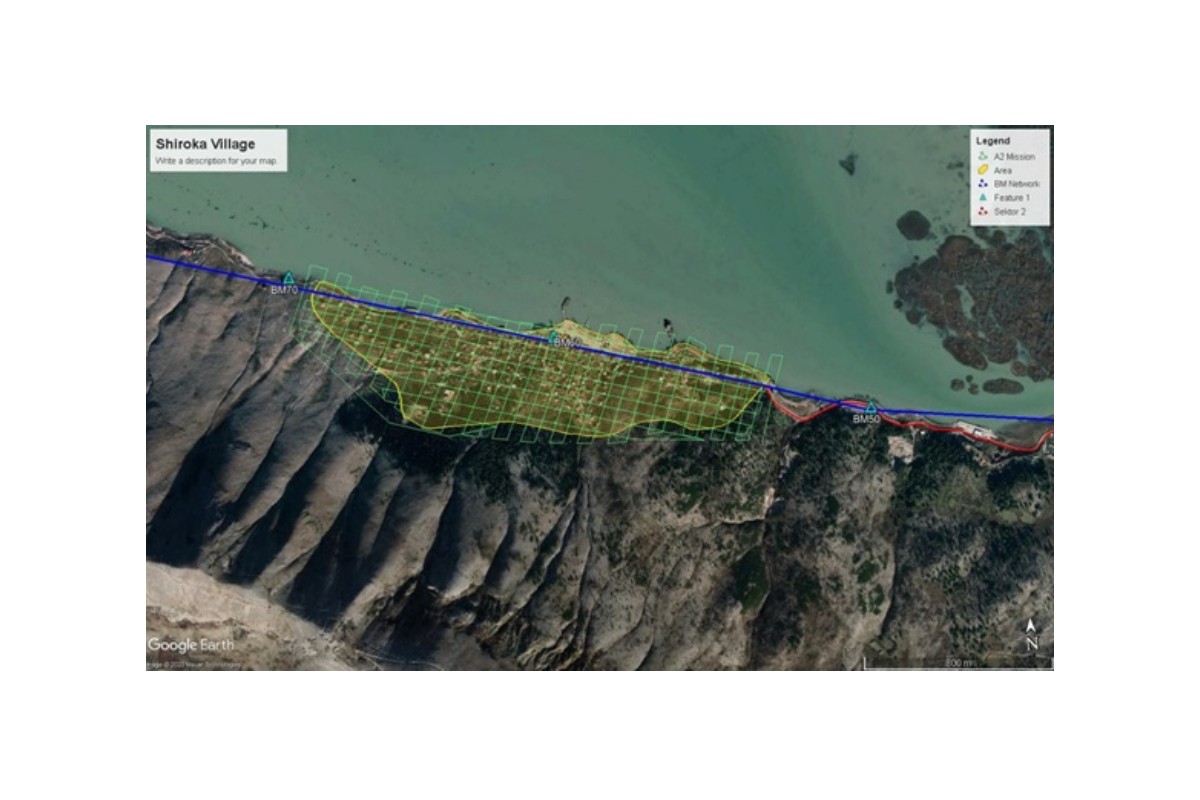

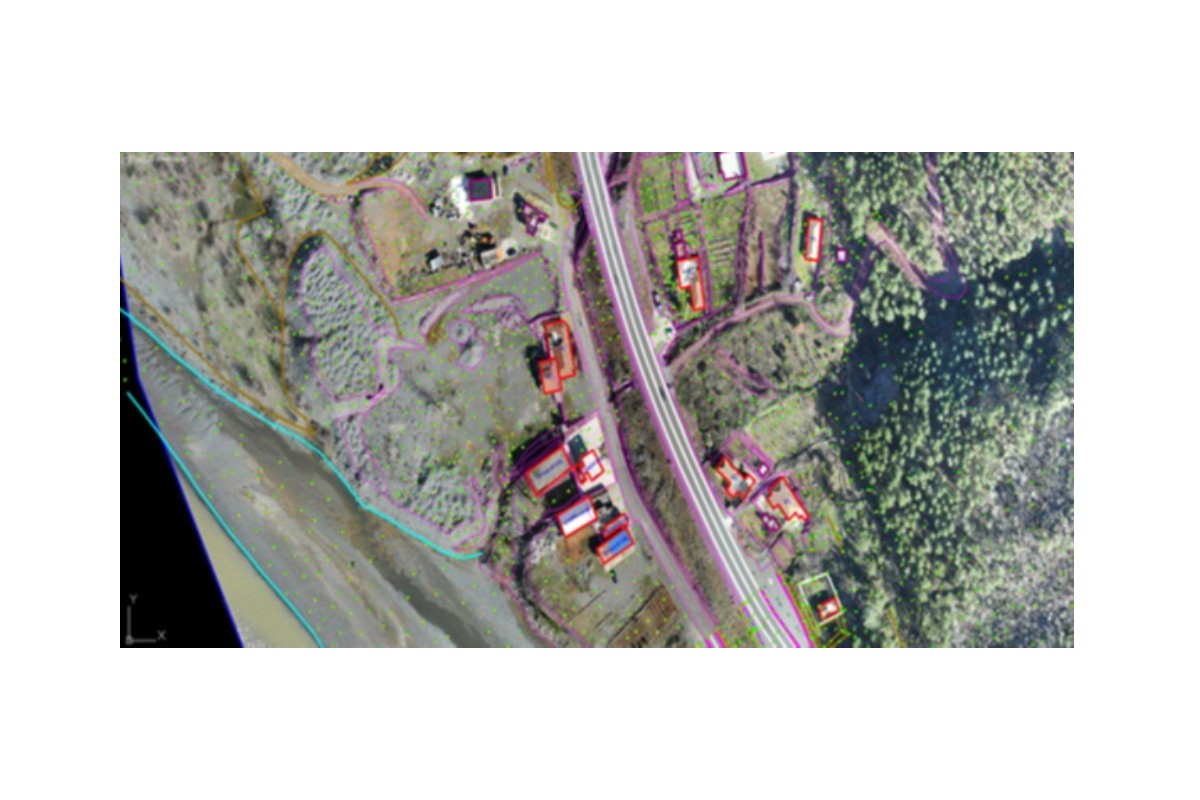

The scope of works are to supply topographical survey services for the sub-projects of Water supply and Sewage Systems and the improvement of Waste Management in the villages of Shiroke and Zogaj in the Shkodra lake area. Two types of topographical survey services are required: a) Topographic survey for Sectors. A linear topographical survey should be performed. The survey should represented at least the following objects: -The road; -The survey band should be minimally 5m on each side of the road; -Street junctions with the main road; -Buildings and cadastral boundaries. -Topographical curves in 3D. b) Topographic survey for Areas. The survey should represented at least the following objects: -All streets. -All Buildings and cadastral boundaries in the area. -Topographic curves in 3D. -Specific survey for water tank in area 2 and area 3 (specify X, Y, Z for the ground level and roof level). -In Area 3, attention should be focused on the pumping station for water supply (X, Y, and Z of the building). In Area 2, the existing sanitation network should be survey. For each manhole, provide the ground level, the depth and invert level of each pipe. The service provider will try to draw the network with this information. -In Area 2, a pumping station for sanitation has to be measured (depth, level of pipe, diameter of the pumping station).
